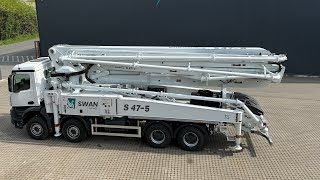

جديد شاحنة خلط الخرسانة Mercedes-Benz Arocs 4142 Mercedes-Benz Arocs 5 4542 8x4 SWAN TSP 47-5 160RZ (

= Additional options and accessories =

- Air Suspension Seats
- Bluetooth
- Differential Lock
- Leaf spring suspension

= Remarks =

Mercedes-Benz Arocs 5 4542 8x4 Euro 3

EuromixMTP concrete pump

SWAN TSP 47-5 160RZ

NEW – without registration -

Vehicle equipment:

Engine OM460, R6, 12.8 l, 310 kW (421 hp), 2,100 Nm, Euro 3
Gearbox G 280‑16/11.7,7–0.69
Front axle 9 t – rear axle, 300 crown wheel, planetary, 13.4 t
Weight variant 41.8 t (7.5/7.5/13.4/13.4)
Wheelbase 5,450 mm
Cab S‑cab Classic Space
Disc brakes on front and rear axles
Fuel tank 290 l, left side, 735 x 700 x 750 mm
Cab rear wall with window – tinted windscreen
Roof hatch/ventilation flap in roof
Exterior sun visor, transparent
Multifunction steering wheel
Classic cockpit
Air conditioning
Cruise control
Vehicle class N3G, off‑road vehicle

EUROMIX MTP – concrete pump SWAN TSP 47‑5 160RZ

Model: SWAN TSP 47‑5 160 RZ

Section: Concrete pump

Max. theoretical concrete output: 160 m³/h
Max. theoretical concrete pressure: 85 bar
Strokes: 30 per minute
Delivery cylinders: Ø 2,100 mm x Ø 230 mm
Main hydraulic cylinder: Ø 2,100 mm x Ø 140 x Ø 80 mm
Concrete valve: S‑valve
Water pump: 20 l/min – 170 bar
Water tank: 800 l, 12 m hose with spray gun
Concrete hopper: 600 l
Lubrication: Lincoln automatic lubrication for hopper group
Hydraulic pumps: Rexroth 2 x A4VG145, Rexroth A10VO28, Rexroth A17FO045, Blau Ascend AP 20.140/115
Change‑over system: magnetic sensor (proximity switch)
Control box: DIGITEX, waterproof
Remote control: Scanreco remote control + 30 m cable

Section: Boom

Boom S 47‑5 (5‑section boom, RZ‑folding)
Type: RZ folding
Max. vertical reach: 46.8 m (without end hose)
Max. horizontal reach: 42.8 m (without end hose)
End hose: 3 m single‑flange, DN 125
Outrigger type: X‑type
Slewing range: 365 degrees
Slewing speed: 0.3 rpm
Delivery line diameter: 125 mm (outer diameter 132 mm), 5.5" flanges and couplings
Outrigger span front: 8.6 m
Outrigger span rear: 8.7 m

For further questions, our team is available in the following languages:

Wir sprechen Deutsch
We speak English
Nous parlons français
Mówimy po polsku
Мы говорим по русски
Govorimo Srpskohrvatski

= More information =

Applicable material: Concrete
Front axle 1: Steering
Front axle 2: Steering
Make of bodywork: EuromixMTP SWAN TSP 47-5 160RZ
Pump: Yes
